Hyderabad Processing Center

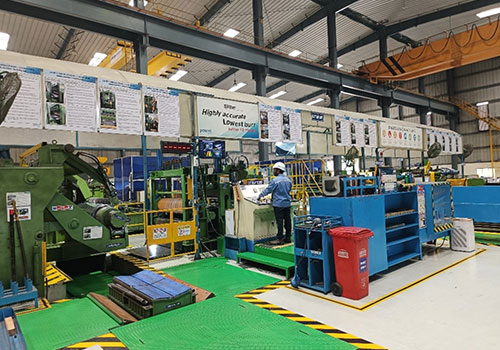

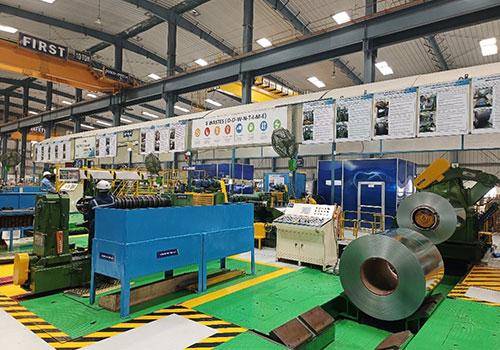

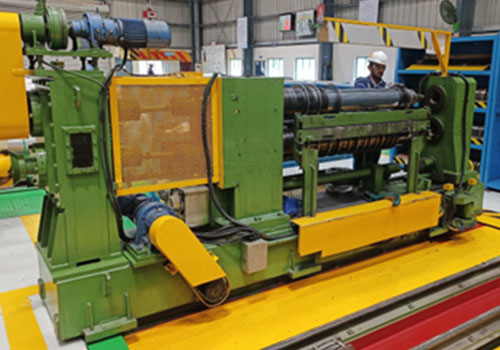

Slitting Line

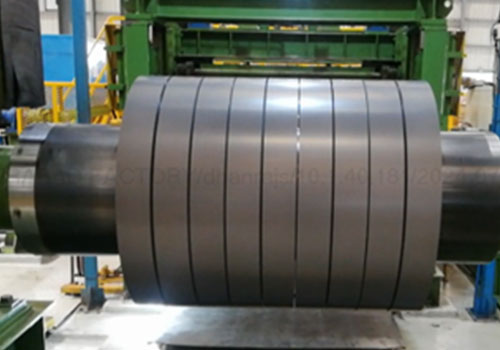

Slitting is a sheet metal cutting process with circular knives, which is used to split wide steel coil into narrower width along the length & recoil it into coil form.

The machine typically consists of the following components:

Un-coiler
Guides
Slitter Head
Scrap winder
Tension Unit
Re-coiler

Hyderabad Processing Center Slitting Line Specifications

Specification	Slitter
Material	Electrical Steel (GO, NO), CR, GI, CC & SS
Thickness (mm)	0.20 mm ~ 1.20 mm
Input Width	200 mm ~ 1,300 mm
Output Width	25 mm ~ 1,300 mm
Maker Country	Korea

Specification	Slitter
Material	Electrical Steel (GO, NO), CR, GI, CC & SS
Thickness (mm)	0.20 mm ~ 1.20 mm
Input Width	200 mm ~ 1,300 mm
Output Width	25 mm ~ 1,300 mm
Capacity (MT/year)	70,000
Maker Country	Korea

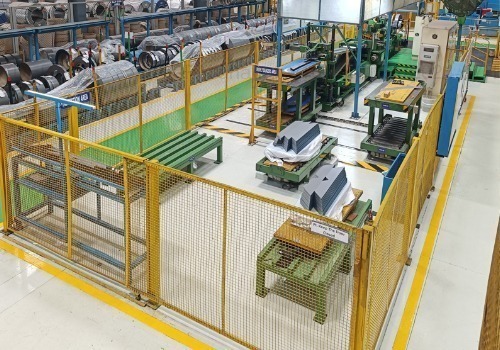

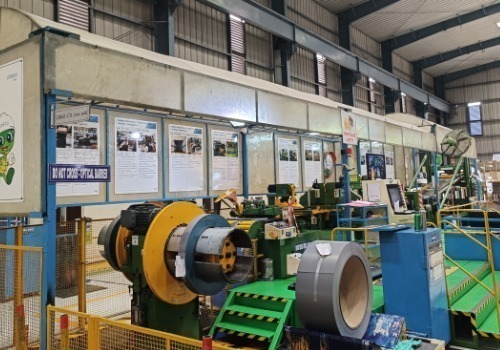

Cut to Length or Lamination Cutting Line (CRGO)

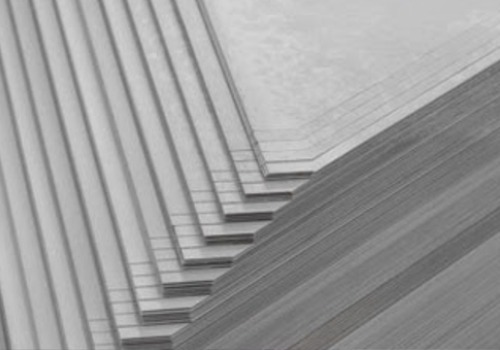

Cut to Length or Lamination Cutting a process in which a CRGO (Cold Rolled Grain Oriented) steel roll (slit coil) is cut into angular sheets / blanks of required shape as per transformer core / reactor core design.

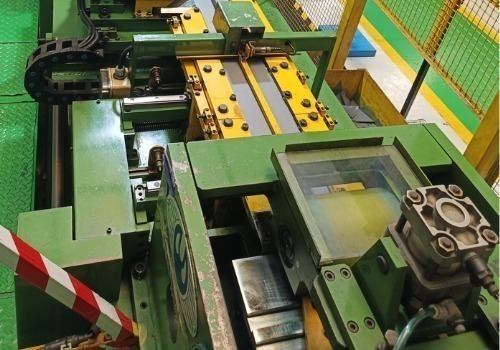

The process of Cut to Length or Lamination Cutting involves CRGO steel coils being fed through a coil feeder machine equipped with V notches, hole punches, tip cutting & shear unit which cuts the steel sheet as per the design / program defined for the core laminations required for core assembly.

Hyderabad Processing Center Cut to Length (Lamination Cutting) Line Specifications

Specification	CTL-300 (USFT300-H)	CTL-640 (USFT640-AS)
Material	CRGO	CRGO
Thickness (mm)	0.2 ~ 0.35 mm	0.2 ~ 0.35 mm
Input Width	35 ~ 300 mm	65 ~ 640 mm
Output Length	180 ~ 1,500 mm (Centre L)	280 ~ 3,500 mm (Centre L)

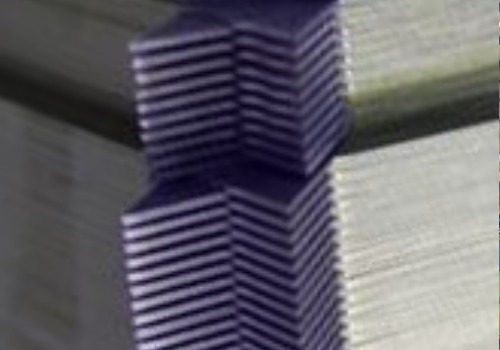

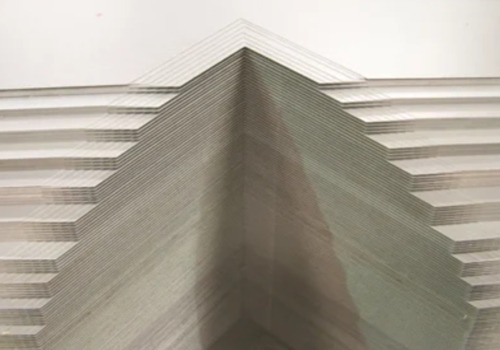

Step Lap Cutting	0 ~ 9 Steps	0 ~ 9 Steps
Tip Cutting	—-	Yes
Maker Country	Korea	Korea

Specification	CTL-300 (USFT300-H)	CTL-640 (USFT640-AS)
Material	CRGO	CRGO
Thickness (mm)	0.2 ~ 0.35 mm	0.2 ~ 0.35 mm
Input Width	35 ~ 300 mm	65 ~ 640 mm
Output Length	180 ~ 1,500 mm (Centre L)	280 ~ 3,500 mm (Centre L)
Step Lap Cutting	0 ~ 9 Steps	0 ~ 9 Steps
Tip Cutting	—-	Yes
Capacity (MT/year)	1,350	2,700
Maker Country	Korea	Korea
