Slitting Line

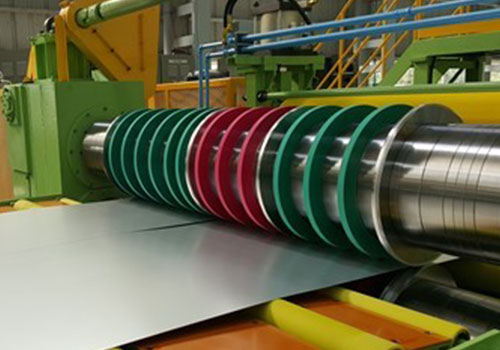

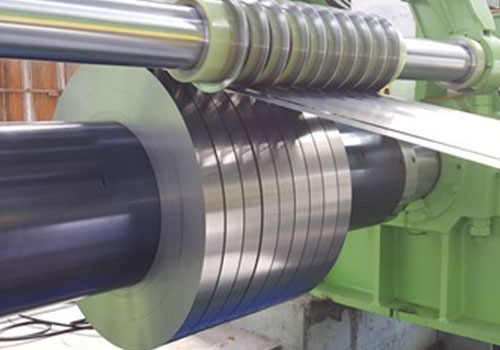

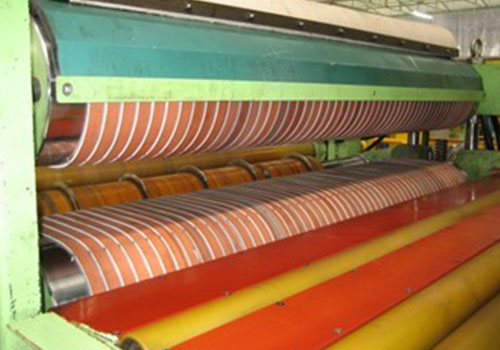

Slitting is a sheet metal cutting process with circular knives, which is used to split wide steel coil into narrower width along the length & recoil it into coil form.
The machine typically consists of the following components:
- Un-coiler
- Guides

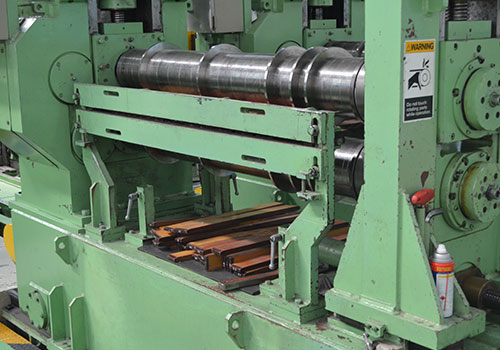

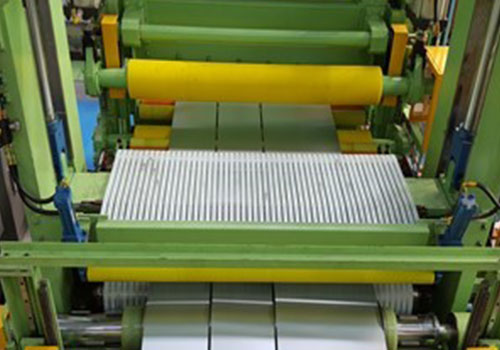

- Slitter Head
- Scrap winder
- Tension Unit
- Re-coiler
Pune Processing Center Slitting Line Specifications
| Line | Slitter 1 | Slitter 2 | Slitter 3 | Slitter 4 |
|---|---|---|---|---|
|
Material |
Electrical Steel
– GO / NO
|
CR / GI / STS / EG / PO
|
CR / GI / PO
|
CR / GI / GA / STS / EG / NO
|
|
Thickness (mm) |
0.2 mm ~ 1.2 mm |
0.35 mm ~ 3.2 mm |
1.6 mm ~ 9.0 mm |
0.3 mm ~ 2.5 mm |
|
Input Width |
500 mm ~ 1,300 mm |
500 mm ~ 1,650 mm |
500 mm ~ 1,650 mm |
500 mm ~ 1,650 mm |
|
Output Width |
30 mm ~ 1,300 mm |
40 mm ~ 1,650 mm |
50 mm ~ 1,650 mm |
40 mm ~ 1,650 mm |
|
Maker Country |
Korea |
Korea |
Korea |
Korea |
| Line | Slitter 1 | Slitter 2 | Slitter 3 | Slitter 4 |
|---|---|---|---|---|
|
Material |
Electrical Steel
– GO / NO
|
CR / GI / STS / EG / PO
|
CR / GI / PO
|
CR / GI / GA / STS / EG / NO
|
|
Thickness (mm) |
0.2 mm ~ 1.2 mm |
0.35 mm ~ 3.2 mm |
1.6 mm ~ 9.0 mm |
0.3 mm ~ 2.5 mm |
|
Input Width |
500 mm ~ 1,300 mm |
500 mm ~ 1,650 mm |
500 mm ~ 1,650 mm |
500 mm ~ 1,650 mm |
|
Output Width |
30 mm ~ 1,300 mm |
40 mm ~ 1,650 mm |
50 mm ~ 1,650 mm |
40 mm ~ 1,650 mm |
|
Capacity (MT/year) |
70,000 |
95,000 |
100,000 |
95,000 |
|
Maker Country |
Korea |
Korea |
Korea |
Korea |
Shearing Line

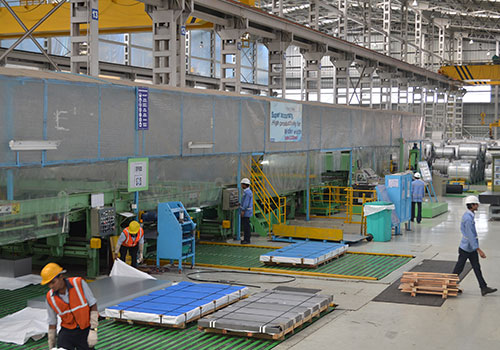

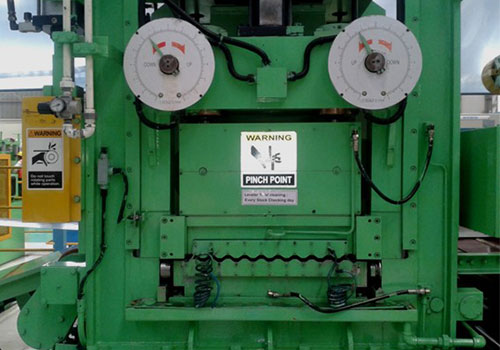

Shearing is a process in which a roll of material (coil) is cut into sheets of required length or pitch. During this process, the material is cut across the rolling direction of input coils.

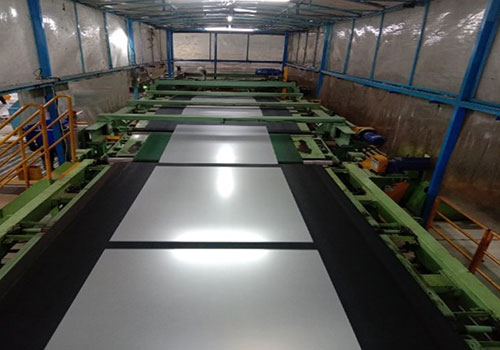

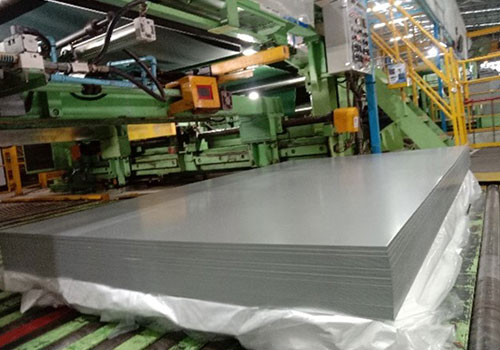

The process of Shearing sheet metal involves steel coils being fed through a shear machine with straight knives (on top & bottom), which cuts the material into required sheets. From this, the cut sheets are then stacked on pallets for further usage.
Pune Processing Center Shearing Line Specifications
| Line | Rotary Shear | Mini Shear 1 | Mini Shear 2 |
|---|---|---|---|
|
Material |
CR / GI / GA / STS / EG / PO |
||
|
Thickness (mm) |
0.4 mm ~ 3.2 mm |
0.4 mm ~ 2.3 mm |
0.3 mm ~ 3.0 mm |
|
Input Width |
500 mm ~ 1,850 mm |
150 mm ~ 700 mm |
150 mm ~ 800 mm |
|
Output Length |
450 mm ~ 5,000 mm |
300 mm ~ 2,500 mm |
300 mm ~ 2,500 mm |
|
Maker Country |
Korea |
Korea |
Korea |
| Line | Rotary Shear | Mini Shear 1 | Mini Shear 2 |
|---|---|---|---|
|
Material |
CR / GI / GA / STS / EG / PO |
||
|
Thickness (mm) |
0.4 mm ~ 3.2 mm |
0.4 mm ~ 2.3 mm |
0.3 mm ~ 3.0 mm |
|
Input Width |
500 mm ~ 1,850 mm |
150 mm ~ 700 mm |
150 mm ~ 800 mm |
|
Output Length |
450 mm ~ 5,000 mm |
300 mm ~ 2,500 mm |
300 mm ~ 2,500 mm |
|
Capacity (MT/year) |
75,000 |
35,000 |
35,000 |
|
Maker Country |
Korea |
Korea |
Korea |

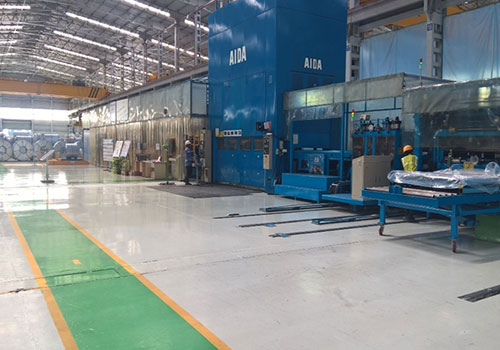

Blanking Line

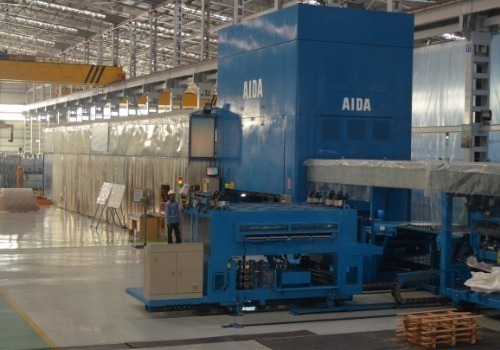

Blanking is a process in which a roll of material (coil) is cut into angular sheets / profile blanks of required shape with the help of metal dies. During this process, the material is cut across the rolling direction of input coils along with piercing of holes / offcuts as per final part design.

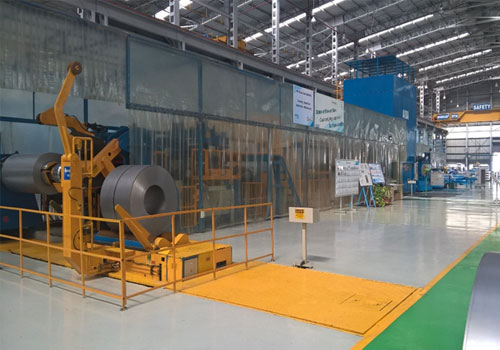

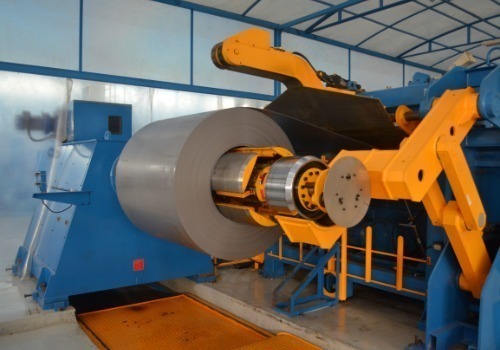

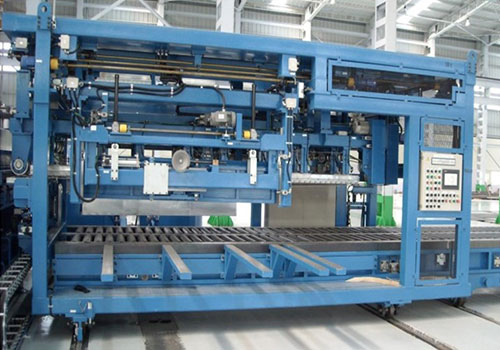

The process of Blanking sheet metal involves steel coils being fed through a coil feeder machine equipped with a Press which holds the metal die used for cutting blanks. From this, the cut blanks are then stacked on pallets for further usage.
Pune Processing Center Blanking Line Specifications
| Line | Blanking |
|---|---|
|
Material |
CR / GI / GA / EG / STS / PO |
|
Thickness (mm) |
0.5 mm ~ 4.5 mm |
|
Input Width |
500 mm ~ 1,850 mm |
|
Output Length |
150 mm ~ 4000 mm |
|
Bolster Size |
2200 mm ~ 4000 mm |
|
Maker Country |
Japan |
| Line | Blanking |
|---|---|
|
Material |
CR / GI / GA / EG / STS / PO |
|
Thickness (mm) |
0.5 mm ~ 4.5 mm |
|
Input Width |
500 mm ~ 1,850 mm |
|
Output Length |
150 mm ~ 4000 mm |
|
Press Capacity |
800 MT |
|
Bolster Size |
2200 mm ~ 4000 mm |
|
Capacity (MT/year) |
40000 |
|
Maker Country |
AIDA, Japan |
